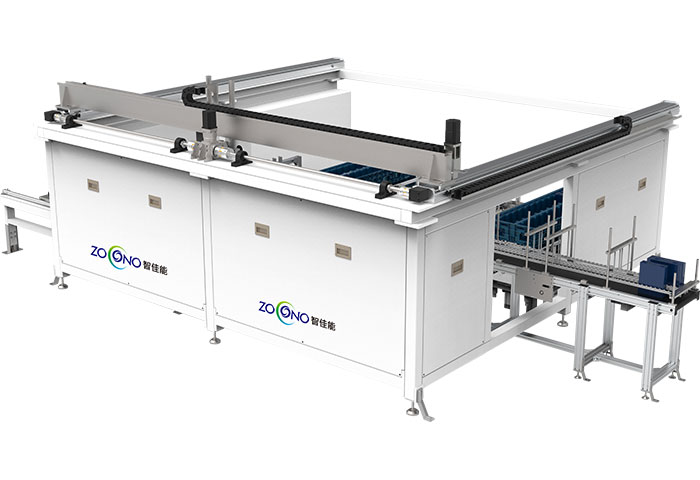

Equipment Description
The equipment is used for the selection of defective lithium batteries. The pallets are automatically loaded with batteries and the codes will be scanned to read battery information for automatic NG selection.
Equipment Features
- The equipment consists of a pallet unpacking position, a retesting position, and an NG sorting belt, etc.
- Automated design, high efficient sorting
- Functions of automatic replication and automatic reorganization of full pallets，etc.
Equipment Parameters
| Equipment Size |
3800*3600*2200mm |
| Equipment Capacity |
≥6PPM |
| Repeated Positioning Accuracy |
±0.05mm |
| Effective Travel Ranges of X and Y axis |
3000*3300mm |
| Z-axis Effective Travel Range |
700mm |
