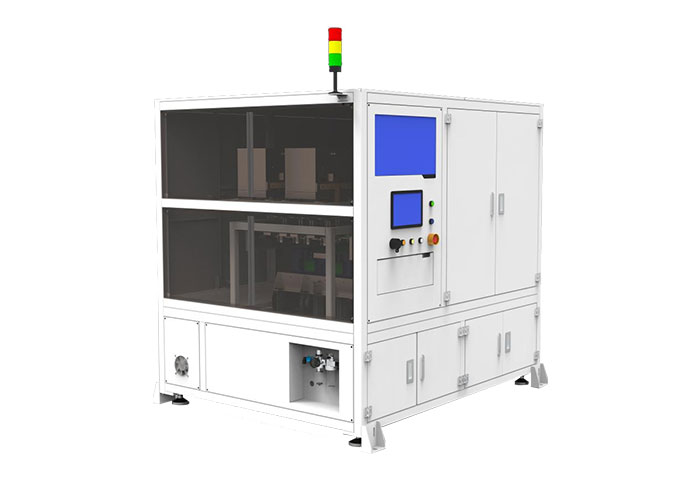

Equipment Description
It is composed of automatic loading mechanism, pallet code scanning mechanism and battery DCIR testing mechanism, which can automatically complete battery pallet code scanning and DCIR testing, and automatically store test data and upload to MES and WMS systems.
Equipment Features
- Automatic loading and unloading
- Self-developed test probe, pressing life ≥ 30,000 times, probe contact surface and battery electrode column indentation ≤0.1mcm
- Wide compatible battery range, modular and flexible design, easy to change battery type
Equipment Parameters
| Equipment Capacity |
≥12PPM |
| Equipment Excellence Rate |
≥ 99.98% |
| Voltage Charge Setting Range |
2000mV-5000mV |
| Voltage Discharge Setting Range |
0mV-5000mV |
| Voltage Display Resolution |
0.1mV |
| Voltage Accuracy |
±2mV |
| Current Charge and Discharge Setting Range |
500mA-500000mA |
| Current Display Resolution |
0.1mA |
| Current Accuracy |
± 0.05%FS |
| Test Time Accuracy |
±20ms |
